TIG Welding Machine
Trusted Name for Complete Welding Applications
TIG Series MOSFET Inverter DC TIG/MMA Welder
Product Description
- Latest high working frequency inverter technology - Lightweight & compact design
- High frequency transformer - High efficiency
- Two-in-one machine - TIG/MMA welding
- High capacity fast recovery diode - No high frequency interference
- Advanced cooling technology - Stability in operation
- Protection against over heat, under voltage over voltage & surge in input supply safety in operation
- Unique rugged design - Reliability, Durability & Ease of Maintenance
- High frequency Arc staring even at 5 Amps
Main Technical Parameters
| Model | TIG-200 | TIG-250S | TIG-250 |
|---|---|---|---|
| Input Power Voltage(V) : | AC230V +/- 10% | AC230V +/- 10% | AC415V +/- 10% |
| Frequency(Hz) : | 50/60 | 50/60 | 50/60 |
| Rated Output Capacity (KVA) : | TIG 17.2 MMA 27.2 | TIG 18.2 MMA 28.2 | TIG 18.2 MMA 28.2 |
| Rated Input Current(A) : | TIG:18.8 MMA 30 | TIG 27.7 MMA 43 | TIG:6.6 MMA 10 |
| No Load Voltage(V) : | 65 | 54 | 54 |
| Duty Cycle(%) : | 60% | 60% | 60% |
| Power Factor : | 0.73 | 0.85 | 0.85 |
| Current Adjustig Range(A) : | 8-200 | 8-250 | 8-250 |
| Insulation Class : | F | F | F |
| Efficiency(%) : | 87% | 93% | 93% |
| Case Protection Degree : | IP21 | IP21 | IP21 |
| Overall Dimension(mm) : | 365 x 150 x 290 | 490 x 205 x 370 | 490 x 205 x 370 |
| Weight(Kg) : | 8 | 14 | 14 |

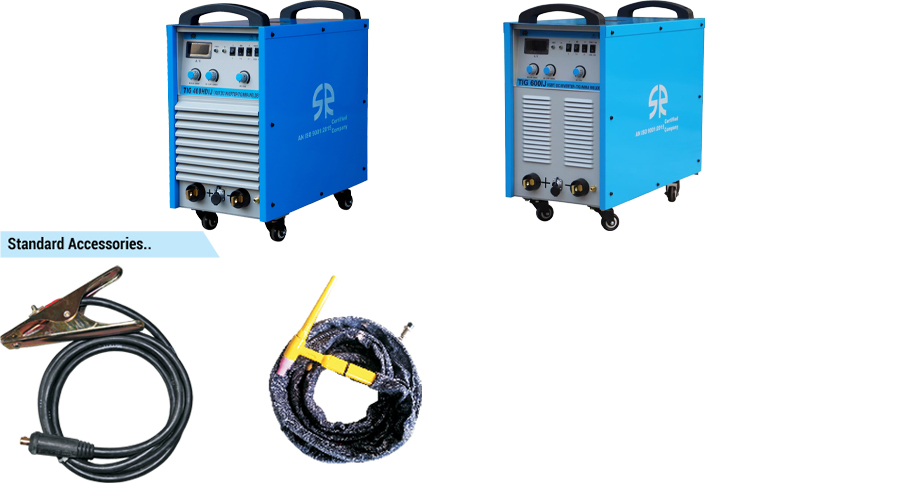

TIG-Series DC IGBT Inverter TIG/MMA Welder
Product Description
- Heavy duty IGBT inverter technology - light weight & compact design.
- Full wave with full bridge design - pure dc wave resulting in excellent welding
- Two-in-one machine - TIG/MMA welding (with Inbuilt HF Unit)
- High frequency & low frequency & pulse options - auto / manual operation
- Advanced cooling technology - stability in operation
- Digital display of current & voltage - operator friendly
- Protection against over heat, under voltage, over voltage & surge in input supply - safety in operation
- Unique rugged design - Reliability, Durability & Ease of Maintenance
Main Technical Parameters
| Model | TIG 400 HDIJ | TIG-600 IJ |
|---|---|---|
| Input Power Voltage(V) : | AC415V +/- 10% | AC415V +/- 10% |
| Frequency(Hz) : | 50/60 | 50/60 |
| Rated Output Capacity (KVA) : | TIG 15 MMA 20 | TIG 21 MMA 28 |
| Rated Input Current(A) : | TIG:23 MMA 32 | TIG 33 MMA 44 |
| No Load Voltage(V) : | 75 | 75 |
| Duty Cycle(%) : | 100% | 100% @ 500 A |
| Rated Output Current(A) : | 400 | 600 |
| Current Adjustig Range(A) : | 12-400 | 15-600 |
| Insulation Class : | F | F |
| Efficiency(%) : | 89% | 89% |
| Case Protection Degree : | IP23 | IP23 |
| Overall Dimension(mm) : | 576 x 297 x 567 | 636 x 322 x 582 |
| Weight(Kg) : | 38 | 45 |
