MIG Series IGBT Inverter MIG/MMA Welder (2-IN-1)
Product Description
- Latest IGBT inverter technology, with high working frequency - High efficiency & Energy savings.
- Full wave with full control bridge - pure dc wave resulting in excellent welding
- Setting of exact current & voltage - Ease of operation
- Soft start for wire feed with excellent Arc striking
- Constant current/constant voltage provisions- (ARC CUM MIG)
- 2T/4T provision.
- Wire feeder with 4 Roll drive - No chance of slippage in wire feeding
- Protection against over heat, under voltage, over voltage & surge in current-safety in operation
- Unique rugged design - Durability & Ease of maintenance.
- Adjustable Crater Current and Crater Voltage Facility
Main Technical Parameters
| Model | MIG 270 VIJ | MIG 400 VIJ | MIG 600 VIJ |
|---|---|---|---|
| Input Power Voltage(V) : | AC230V(1ph OR AC415(3ph) +/- 10% | AC415V +/- 10% | AC415V +/- 10% |
| Rated Output Capacity (KVA) : | 14 | 16 | 25 |
| Rated Input Current(A) : | 18 | 26 | 35 |
| No Load Voltage(V) : | 65 | 65 | 65 |
| Duty Cycle(%) : | 60% | 60% | 60% |
| Current Adjustig Range(A) : | 28-270 | 48-400 | 68-600 |
| Rated Input Current(V) : | 14-34 | 15-38 | 16-46 |
| Overall Dimension(mm) : | 500 x 250 x 450 | 585 x 277 x 486 | 607 x 307 x 567 |
| Weight(Kg) : | 24 | 34 | 42 |
| Welding Thickness : | 0.6 - 5mm | 0.6 - 10mm | 0.6 - 20mm |
| Suitable Wire : | ∅ 0.8/1.2 | ∅ 0.8/1.2 | ∅ 1.2/1.6 |
| Wire Feed Rate(m/mm) : | 3-20 | 3-20 | 3-20 |
| Gas Flow(L/min) : | 5-15% | 5-15 | 5-15 |

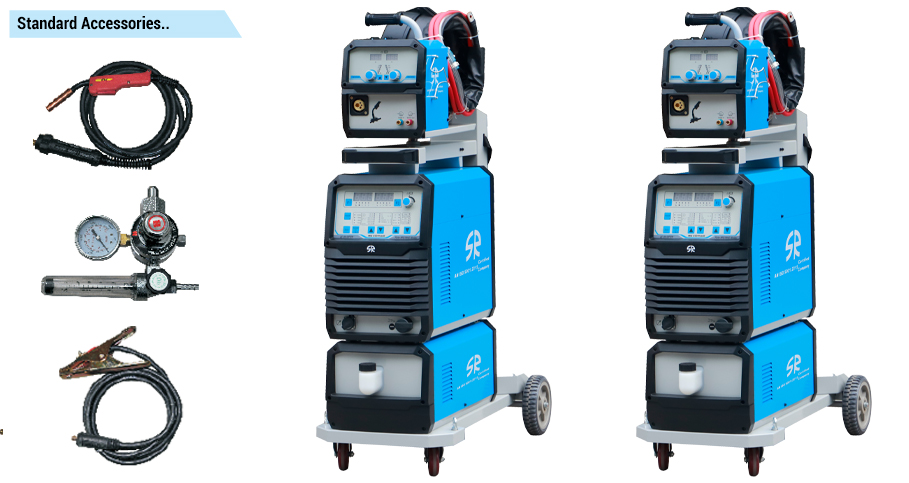

MIG-P Series IGBT (Module) Inverter Double Pulse MIG Welder
Product Description
- With double pulse function we can obtain the beautiful appearance of weld quality
- Square wave with pulse width technology - stable & excellent control over welding
- Advanced latest design - Excellent arc striking & heat generation
- Protection against over heat, low voltage & surge in current - safety in operation.
- Suitable for aluminum, stainless steel & copper welding applications.
- Unique rugged design - Durability & Ease of Maintenance
- It can save up to 100 sets of custom parameter specification
- Best Suitable for Aluminium Welding
Main Technical Parameters
| Model | MIG 350 Pulse | MIG 500 Pulse |
|---|---|---|
| Input Power Voltage(V) : | AC415V +/- 10% | AC415V +/- 10% |
| Rated Input Current(A) : | 21 | 36 |
| Output Volyage Range(V)) : | 14-45 | 14-50 |
| Rated Output Current(A) : | 350 | 500 |
| No Load Voltage(V) : | 101 | 106 |
| Current Adjustig Range(A) : | 20-350 | 20-500 |
| Duty Cycle(%) : | 100 | 100 |
| Power Factor : | 0.9 | 0.9 |
| Overall Dimension(mm) : | 1004 x 650 x 1470 | 980 X 525 X 960 |
| Weight(Kg) : | 113 | 118 |
