Aluminium Welding Machine
Trusted Name for Complete Welding Applications

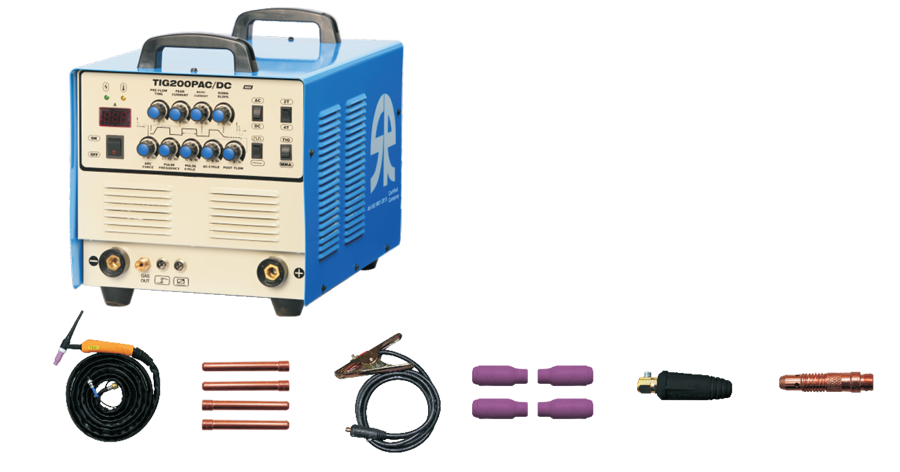

TIG-P Series MOSFET Inverter AC/DC Pulse TIG Welder
Product Description
- Mosfet inverter technology- Light weight & Compact Design
- Square wave with pulse width technology-stable & excellent control on welding
- Advanced latest design- Excellent arc striking & heat generation
- Protection against Over Heat, Low Voltage & Surge in Current- safety in operation
- Suitable for aluminium, stainless steel & copper welding applications
- Unique rugged design- Durability & Ease of Maintenance
Main Technical Parameters
| TIG-200 P | |
|---|---|
| Input Power Voltage: | AC 230V +/- 10% |
| Rated Input current MMA/TIG(A): | 19/12 |
| Rated Output voltage MMA/TIG(V): | 31-21 |
| Rated Output current(A) : | 200 |
| No Load Voltage : | 56 |
| Current Adjusting Range | 10-200 |
| Duty Cycle(%): | 60% |
| Overall dimension: | 493 x 330 x 320 |
| Weight(Kg): | 24 |
| Arc Starting | HF |

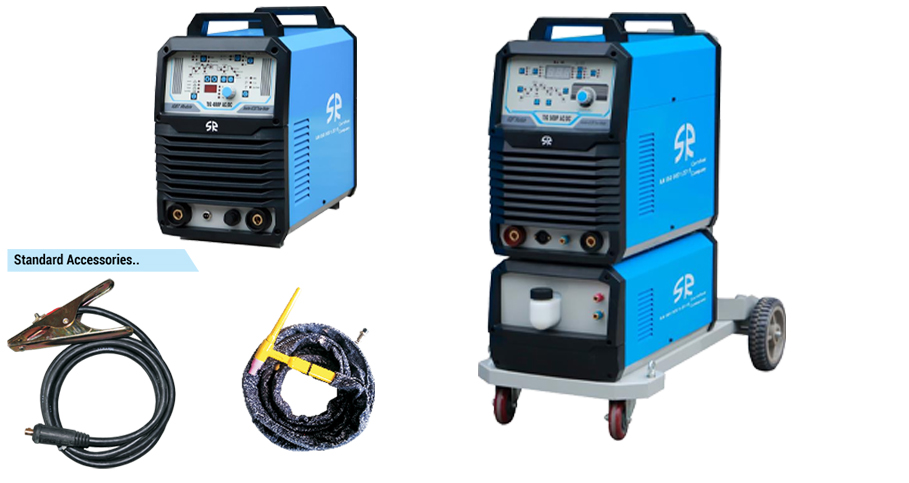

TIG-P Series AC/DC IGBT Inverter Pulse TIG/MMA Welder
Product Description
- Latest IGBT high frequency soft switch technology-Lightweight, compact Design & high efficiency
- State of art control -- stable & excellent control over welding
- Adopting passive power factor correction - Energy savings
- Advanced latest design - Excellent Arc striking & heat generation
- Protection against over heat, under voltage, over voltage & surge in current in input supply - safety in operation.
- With more options like MMA, DC TIG/PULSE TIG and AC TIG/PULSE TIG
- Unique rugged design - Durability & Ease of maintenance
Main Technical Parameters
| Model | TIG 400P AC/DC | TIG 500P AC/DC |
|---|---|---|
| Input Power Voltage(V) : | AC415V +/- 10% | AC415V +/- 10% |
| Rated Input Current(A) : | 18 | 31 |
| Rated Output Capacity (KVA) : | 17 | 28 |
| Current Adjustig Range(A) : | 200-400 | 200-500 |
| Duty Cycle(%) : | 60 | 100 |
| Pulse Frequency(Hz) : | 0.2-20 | 0.2-20 |
| AC Frequency(Hz) : | 20-100 | 20-100 |
| Cleanup Rate(%) : | -40-+40 | -40-+40 |
| AC Offset Rate(%) : | -50-+30 | -50-+30 |
| Weight(Kg) : | 82 |
