ARC Welding Machine
Trusted Name for Complete Welding Applications
ARC Series Inverter DC MMA Welder (Single Phase)
Product Description
- Latest inverter with pulse width technology - Lightweight and Compact Design
- High frequency transformer with soft magnetic ferrite - High Efficiency
- Protection against over heat. Under Voltage, Over voltage & surgein in input power - Safety in operation
- Passive Power Factor Correction - Energy Savings
- Unique Rugged Design - Reliability, Durability & Ease of Maintenance
- Electrides - Acidic / Cellulose
Main Technical Parameters
| Model | ARC-200 M2 (IGBT) | ARC-200 HD (MOSFET) |
|---|---|---|
| Input Power Voltage(V) : | AC230V +/- 10% | AC230V +/- 10% |
| Frequency(Hz) : | 50/60 | 50/60 |
| Rated Input Current(A) : | 28 | 33 |
| Rated Output Voltage(V): | 26 | 26.8 |
| No Load Voltage(V) : | 55 | 56 |
| Current Adjustig Range(A) : | 10-200 | 20-200 |
| Duty Cycle(%) : | 60 | 60 |
| Efficiency(%) : | 85 | 80 |
| Power Factor : | 0.93 | 0.93 |
| Insulation Class : | F | F |
| Case Protection Degree : | IP21 | IP21 |
| Weight(Kg) : | 4.5 | 8 |
| Overall Dimension(mm) : | 380 x 160 x 250 | 406 x 153 x 232 |
ARC Series Inverter DC MMA Welder ( Dual Voltage Series 200K/250K )
Product Description
- Latest inverter with pulse width technology - Lightweight and Compact Design
- High frequency transformer with soft magnetic ferrite - High Efficiency
- Protection against over heat. Under Voltage, Over voltage & surgein in input power - Safety in operation
- Passive Power Factor Correction - Energy Savings
- Unique Rugged Design - Reliability, Durability & Ease of Maintenance
- Electrides - Acidic & General Purpose
Main Technical Parameters
| Model | ARC-200 K (IGBT) | ARC-250 K (IGBT) |
|---|---|---|
| Input Power Voltage(V) : | AC230V +/- 10% OR AC415V +/- 10%(2ph) | AC230V +/- 10% OR AC415V +/- 10%(2ph) |
| Frequency(Hz) : | 50/60 | 50/60 |
| Rated Input Current(A) : | 25 | 30 |
| Rated Output Voltage(V): | 28.2 | 28.2 |
| No Load Voltage(V) : | 58 | 58 |
| Current Adjustig Range(A) : | 20-200 | 20-250 |
| Duty Cycle(%) : | 60 | 60 |
| Efficiency(%) : | 85 | 85 |
| Power Factor : | 0.93 | 0.93 |
| Insulation Class : | F | F |
| Case Protection Degree : | IP21 | IP21 |
| Weight(Kg) : | 4.0 | 5.5 |
| Overall Dimension(mm) : | 225 x 160 x 225 | 350 x 140 x 255 |

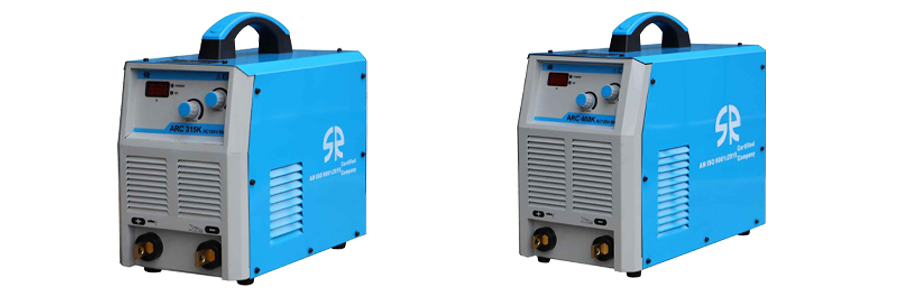

ARC Series Inverter DC MMA Welder ( Dual Voltage Series 400K )
Product Description
- Latest inverter with pulse width technology - Lightweight and Compact Design
- High frequency transformer with soft magnetic ferrite - High Efficiency
- Protection against over heat. Under Voltage, Over voltage & surgein in input power - Safety in operation
- Passive Power Factor Correction - Energy Savings
- Unique Rugged Design - Reliability, Durability & Ease of Maintenance
- Electrides - Acidic & General Purpose
Main Technical Parameters
| Model | ARC-315 K (IGBT) | ARC-400 K (IGBT) |
|---|---|---|
| Input Power Voltage(V) : | AC230V +/- 10% OR AC415V +/- 10%(2ph) | AC230V +/- 10% OR AC415V +/- 10%(2ph) |
| Frequency(Hz) : | 50/60 | 50/60 |
| Rated Input Current(A) : | 33 | 37 |
| Rated Output Voltage(V): | 30 | 32 |
| No Load Voltage(V) : | 70 | 70 |
| Current Adjustig Range(A) : | 20-315 | 40-400 |
| Duty Cycle(%) : | 60 | 60 |
| Efficiency(%) : | 85 | 85 |
| Power Factor : | 0.93 | 0.93 |
| Insulation Class : | F | F |
| Case Protection Degree : | IP21 | IP21 |
| Weight(Kg) : | 8.5 | 13.5 |
| Overall Dimension(mm) : | 410 x 220 x 250 | 460 x 230 x 400 |
ARC Series Inverter DC MMA Welder ( Three Phase )
Product Description
- Latest inverter with pulse width technology - Lightweight and Compact Design
- High frequency transformer with soft magnetic ferrite - High Efficiency
- Protection against over heat. Under Voltage, Over voltage & surgein in input power - Safety in operation
- Passive Power Factor Correction - Energy Savings
- Unique Rugged Design - Reliability, Durability & Ease of Maintenance
- Electrides - Acidic & General Purpose
Main Technical Parameters
| Model | ARC-300 G (IGBT Discrete) | ARC-401 G (IGBT Discrete) | ARC-400 GI2 (IGBT Module) |
|---|---|---|---|
| Input Power Voltage(V) : | AC415V +/- 10% | AC415V +/- 10% | AC415V +/- 10% |
| Frequency(Hz) : | 50/60 | 50/60 | 50/60 |
| Rated Input Current(A) : | 14 | 16 | 20 |
| Rated Output Voltage(V): | 28 | 29 | 32.8 |
| No Load Voltage(V) : | 72 | 72 | 65 |
| Current Adjustig Range(A) : | 20-300 | 30-400 | 30-400 |
| Duty Cycle(%) : | 60 | 60 | 60 |
| Efficiency(%) : | 89 | 89 | 85 |
| Power Factor : | 0.90 | 0.90 | 0.93 |
| Insulation Class : | F | F | F |
| Case Protection Degree : | IP21 | IP21 | IP21 |
| Weight(Kg) : | 12.5 | 14 | 15 |
| Overall Dimension(mm) : | 430 x 230 x 400 | 440 x 230 x 400 | 450 x 220 x 343 |
ARC Series IGBT Inverter MMA Welder ( Three Phase Industrial Duty )
Product Description
- Heavy duty IGBT Module Circuit with High Working Frequency - Lightweight & Compact Design.
- Full wave with Full Control Bridge - Pure DC Wave resulting in excellent Welding
- Protection against Over heat, Under Voltage, Over Voltage & Surge in Input Power - Safety in Operation
- Specially Designed Capacitor PCB used. - Also works on Diesel Generator
- Adjustable Hot start & ARC Force features.
- Standard Provision for Remote option with switch.
- VRD provision - for safety during non-welding.
- Heavy Duty Lug Type Output Terminals.
- Unique rugged design - Reliability, Durability & Ease of Maintenance
- Electrodes - All types of Electrodes
- Local/Remote selection provision
- Digital Display Meter for both Voltage & Current
Main Technical Parameters
| Model | ARC-400 IJ | ARC-630 IJ |
|---|---|---|
| Input Power Voltage(V) : | AC415V +/- 10% | AC415V +/- 10% |
| Frequency(Hz) : | 50/60 | 50/60 |
| Rated Input Capacity(KVA) : | 17 | 24 |
| Rated Input Current(A): | 32 | 32 |
| No-Load Voltage(V) : | 75 | 75 |
| Duty Cycle(%) : | 60 | 60 |
| Current Adjustig Range(A) : | 20-400 | 30-630 |
| Efficiency(%) : | 85& | 85& |
| Insulation Class : | F | F |
| Case Protection Degree : | IP21 | IP21 |
| Welding Electrode(mm) : | 2.0 / 3.15 / 4.0 | 3.15 / 4.0 / 5.0 / 6.0 |
| Overall Dimension(mm) : | 600 x 295 x 570 | 636 x 322 x 582 |
| Weight(Kg) : | 24 | 32 |
ARC Series IGBT Inverter MMA Welder ( Three Phase Double Holder )
Product Description
- Double Holder with Individual Current Adjustments
- Heavy Duty IGBT Module Circuit with High Working Frequency - Lightweight & Compact Design
- Full wave with Full Control Bridge - Pure DC wave resulting in excellent Welding
- Protection against Over Heat, Under Voltage, Over Voltage & Surge in Input Power - Safety in operation
- Adjustable hot start & Arc force features.
- Heavy duty lug type output terminals.
- Gouging function available in both Models
- Unique rugged design - Reliability, durability & Ease of Maintenance
- Electrodes - All types of electrodes
Main Technical Parameters
| Model | ARC 630 - 2T | ARC-1000 - 2T |
|---|---|---|
| Input Power Voltage(V) : | AC415V +/- 10% | AC415V +/- 10% |
| Frequency(Hz) : | 50/60 | 50/60 |
| Rated Input Capacity(KVA) : | 20.5 x 2 | 31.5 x 2 |
| Rated Input Current(A): | 30 x 2 | 45 x 2 |
| No-Load Voltage(V) : | 65 | 75 |
| Duty Cycle(%) : | 60& @ 315A x 2 | 60% @ 500A x 2 |
| Current Adjustig Range(A) : | 50-630 | 100-1000 |
| Efficiency(%) : | 85& | 85& |
| Insulation Class : | F | F |
| Case Protection Degree : | IP21 | IP21 |
| Welding Electrode(mm) : | 3.15 / 4.0 / 5.0 | 4.0 / 5.0 / 6.0 / 9.0 |
| Overall Dimension(mm) : | 502 x 263 x 501 | 636 x 322 x 582 |
| Weight(Kg) : | 25 | 40 |
